pots vibrants Sentek de 65 à 400 kN à refroidissement à eau

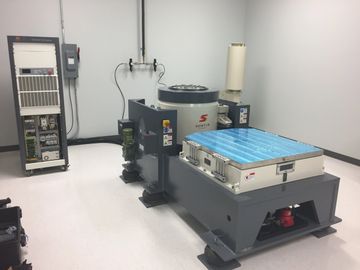

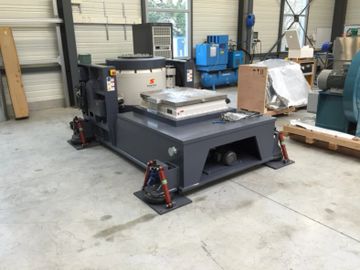

Pots vibrants Sentek série H, de 65 à 160 kN

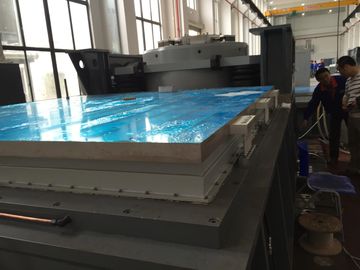

Pots vibrants Sentek à refroidissement à eau, avec options tables horizontales et têtes d'expansion
Pot vibrant Sentek 65 kN
Performances 65 kN - eau
Sine Force kN 63.7
Random Force kN 63.7
Shock Force (6ms) kN 127.4/191.1** =option TSO
Useful Frequency Range Hz 5-2500
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/76* =option LSO
Max Velocity m/s 2/2.5** =option TSO
Max Acceleration (sine) (g) 100
Armature Diameter mm 445
Effective Armature Mass kg 60
Max Static Payload kg 1000
Pot vibrant Sentek 80 kN
Performances 80 kN
Sine Force kN 78,4
Random Force kN 78,4
Shock Force (6ms) kN 156,8/235,2** =option TSO
Useful Frequency Range Hz 5 - 2500
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/76* =option LSO
Max Velocity m/s 2/2,5** =option TSO
Max Acceleration (sine) (g) 100
Armature Diameter mm 445
Effective Armature Mass kg 80
Max Static Payload kg 1000
Pot vibrant Sentek 100 kN
Performances 100 kN
Sine Force kN 98
Random Force kN 98
Shock Force (6ms) kN 196/294** =option TSO
Useful Frequency Range Hz 5-2400
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/76* =option LSO
Max Velocity m/s 2/2.5** =option TSO
Max Acceleration (sine) (g) 100
Armature Diameter mm 560
Effective Armature Mass kg 100
Max Static Payload kg 1500
Pot vibrant Sentek 120 kN
Performances 120 kN
Sine Force kN 117.6
Random Force kN 117.6
Shock Force (6ms) kN 235.2/352.8** =option TSO
Useful Frequency Range Hz 5-2400
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/76* =option LSO
Max Velocity m/s 2/2.5** =option TSO
Max Acceleration (sine) (g) 100
Armature Diameter mm 560
Effective Armature Mass kg 100
Max Static Payload kg 1500
Pot vibrant Sentek 160 kN
Performances 160 kN
Sine Force kN 156.8
Random Force kN 156.8
Shock Force (6ms) kN 313.6
Useful Frequency Range Hz 5-2200
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/76* =option LSO
Max Velocity m/s 2
Max Acceleration (sine) (g) 100
Armature Diameter mm 640
Effective Armature Mass kg 160
Max Static Payload kg 2000
Pots vibrants Sentek série E, de 200 à 400 kN
Pots vibrants Sentek à refroidissement à eau, avec options tables horizontales et têtes d'expansion
Pot vibrant Sentek 200 kN
Performances 200 kN
Sine Force kN 196
Random Force kN 196
Shock Force (6ms) kN 392
Useful Frequency Range Hz 5-2200
Continuous Displacement mm 51/76* =option LSO
Shock Displacement mm 51/6* =option LSO
Max Velocity m/s 2
Max Acceleration (sine) (g) 100
Armature Diameter mm 640
Effective Armature Mass kg 160
Max Static Payload kg 2000
Pot vibrant Sentek 300 kN
Performances 300 kN
Sine Force kN 294
Random Force kN 205.8
Shock Force (6ms) kN 588
Useful Frequency Range Hz 5-1900
Continuous Displacement mm 51
Shock Displacement mm 51
Max Velocity m/s 1.8
Max Acceleration (sine) (g) 100
Armature Diameter mm 760
Effective Armature Mass kg 230
Max Static Payload kg 3200
Pot vibrant Sentek 400 kN
Performances 400 kN
Sine Force kN 392
Random Force kN 274
Shock Force (6ms) kN 784
Useful Frequency Range Hz 5-1700
Continuous Displacement mm 51
Shock Displacement mm 51
Max Velocity m/s 1.8
Max Acceleration (sine) (g) 100
Armature Diameter mm 860
Effective Armature Mass kg 350
Max Static Payload kg 6000
